Banda Arc Geophysics

Earthquakes of the Indonesian Banda Arcs

Summary

Data last Updated: May 2009

The Banda Arcs area is renowned as one of high seismic and volcanic activity. The root cause of this activity is the convergence of  three major tectonic plates: the Eurasian to the north and west, the Indian-Australian to the south and the Pacific plate to the east (including the Caroline and Philippine Sea plates). These large converging plates cannot all occupy the same area on the surface of the earth and so, mountains are raised, plates subducted and many smaller plates and terraines are shuffled around the margins of the large plates.

One of the key geographical and geological features of the Banda Arcs is its arcuate nature which is reflected deep within the earth by a subducting plate(s). This is the primary feature depicted in the image and maps presented here. These are very simple words to describe a very complex situation.



USGS-NEIC Earthquakes

The USGS maintains a 1973-to-present, world-wide, earthquake data catalogue (PDE) at http://neic.usgs.gov/neis/epic/epic.html from where the data shown here have been extracted. These data are as downloaded with no additional processing. Information on the limitations of the data is discussed here.

USGS - United States Geological Survey.

NEIC - National Earthquake Information Centre (US).

Many images and films produced by VisIt from the Lawrence Livermore National Laboratory.

These images should be opened in a new browser window or tab.



Indonesia Rotating hypocentres in 3D space.

May 09

10 meg Avi film

Rotating hypocentres in 3D space. AVI, 10 megabyte film. Banda Area - all PDE earthquakes - depth colour coded. Rotation south to north, around latitude line. AVI should download and automatically run in media player.

Indonesia Rotating hypocentres in 3D space.

May 09

10 meg Avi film

Rotating hypocentres in 3D space. AVI, 10 megabyte film. Banda Area - all PDE earthquakes - depth colour coded. Rotation east to west, around longitude line. AVI should download and automatically run in media player.
Indonesia Earthquakes per year in 3D space

May 09

2.2 meg Avi film

Earthquakes per year in 3D space. AVI, 2.2 megabyte film. Banda Area - all PDE earthquakes - depth colour coded. Each year's activity is sequentially shown (the year is displayed in top-left grey box as part of file name) . AVI should download and automatically run in media player.
Indonesia 3D surface image of gridded hypocentres

May 09

342Kb

3D surface image of gridded hypocentres, viewed from the East. To grid earthquake depth data is rightly considered inappropriate but, this image clearly shows the shape of the Wadati-Benioff zone curving around the Banda Arc. The grid is NOT an accurate representation of the subducting plates(s), for example, it implies a single subducting plate that is continuous from the furthest west to Seram. This may, or may not, be correct. However, the surface does show gross features that are significant.
Banda Area - all hypocentres 0 to 675Km

May 09

442Kb

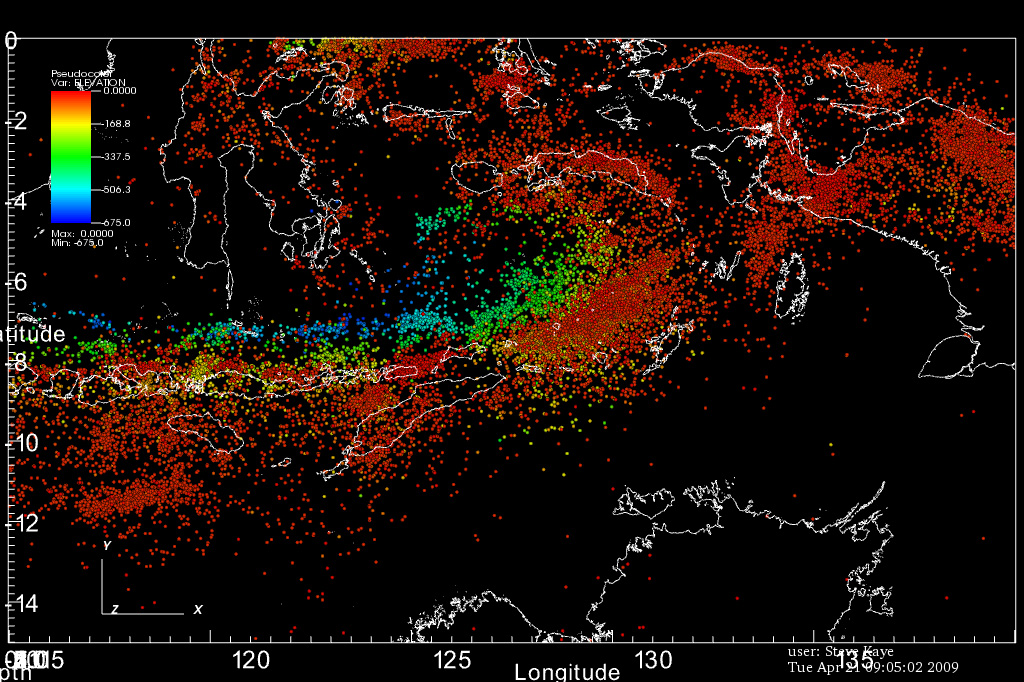

Banda Area - all hypocentres 0 to 675Km - depth colour coded.
Indonesia Banda Arcs Area - all quakes - magnitudes

May 09

621Kb

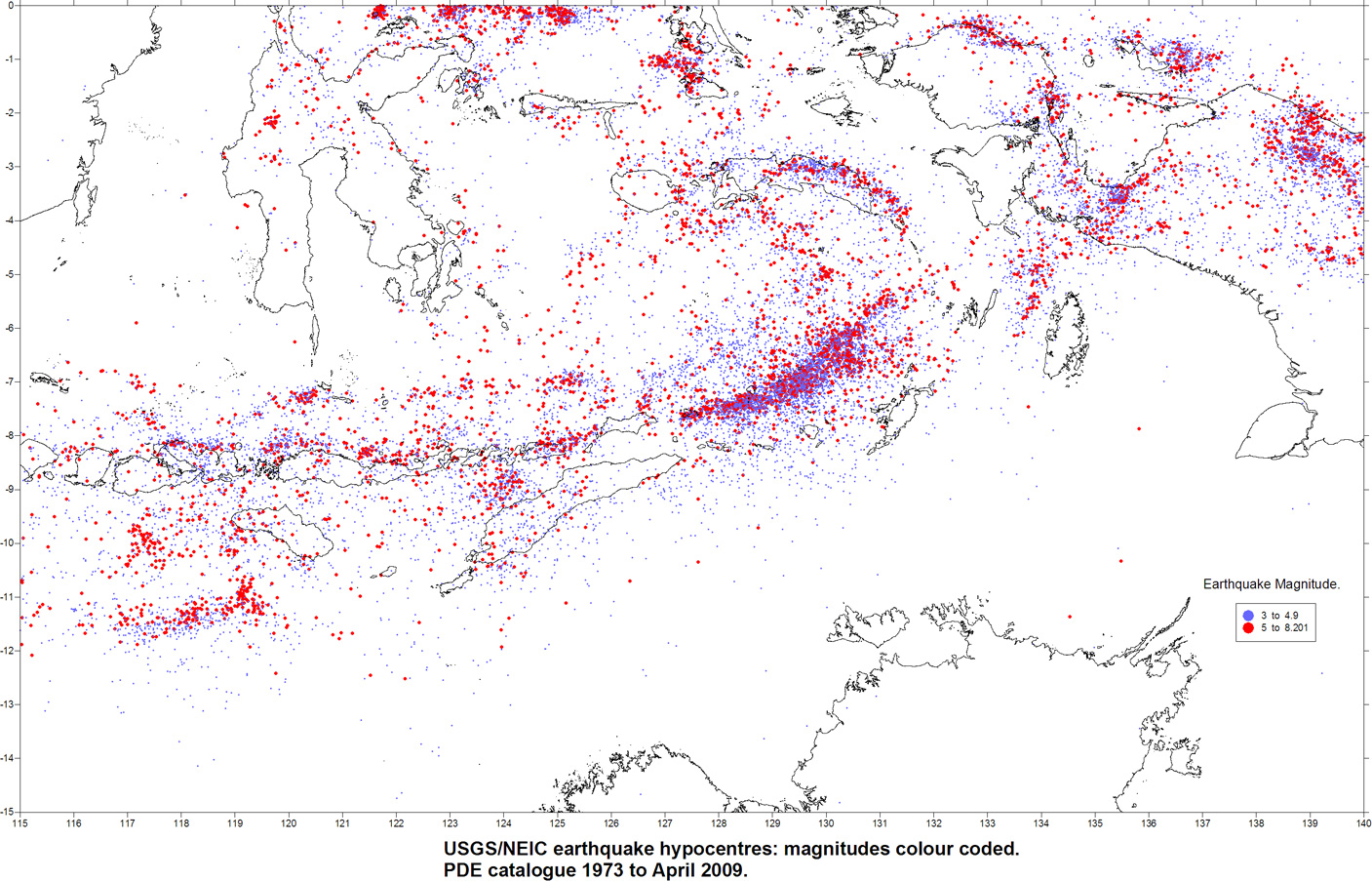

Banda Area - all quakes - magnitudes in two colours.
Indonesia Banda Arcs Area - all quakes - magnitudes


May 09

620Kb

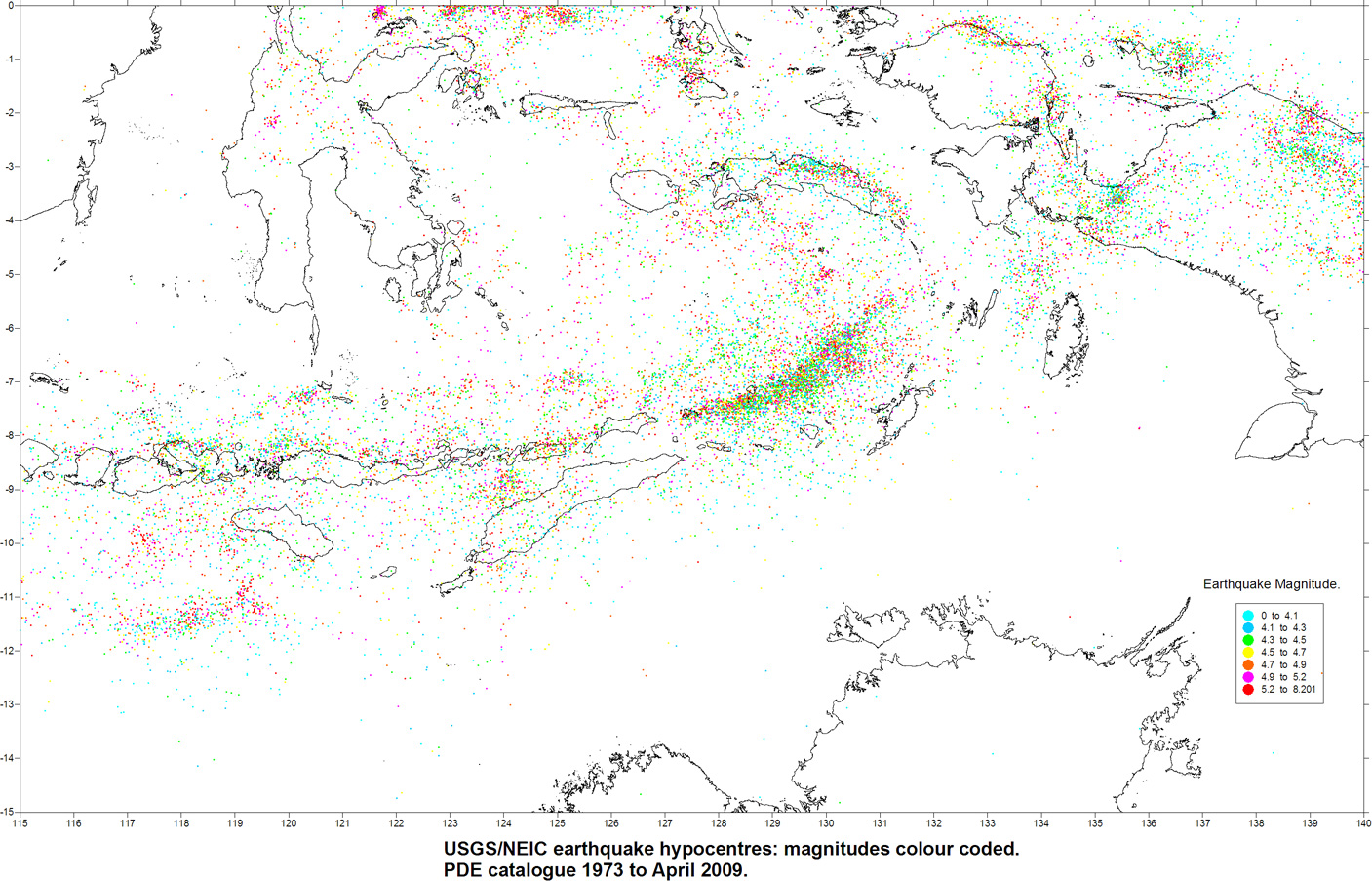

Banda Area - all quakes - magnitudes in colour range.

Earthquake Focal Mechanisms

The USGS/NEIC maintains a 1976-to-present, world-wide, earthquake focal mechanism data catalogue at http://neictest.cr.usgs.gov/neis/sopar/ from where the data shown here have been extracted. The data displayed are the Harvard Centroid Moments with focal mechanism symbols (beach balls) created by GMT. There are usually too many to plot without over-printing, so the data are split into decades for display (1970s to 2000s).

A focal mechanism solution (also known as a fault plane solution) is a way of showing the activated fault, and the direction of slip on it, from an earthquake using circles with two intersecting curves that look like beach balls. There is a lot of information about earthquakes at the USGS/NEIC website http://earthquake.usgs.gov/ and this page, also from the USGS, is a good explanation of focal mechanisms.

USGS - United States Geological Survey

NEIC - National Earthquake Information Centre (US)

GMT - Generic Mapping Tools by Paul Wessel and Walter H.F. Smith and volunteers.

These images should be opened in a new browser window or tab.

Indonesian Earthquake fault solutions from Harvard focal mechanisms

May 09

2000Kb

Earthquake fault solutions from Harvard focal mechanisms. Strike, dip, sense (left or right lateral), normal or reverse and depth shown.
Indonesian Earthquake fault solutions from Harvard focal mechanisms overlying gravity lineaments

May 09

4700Kb

Earthquake fault solutions from Harvard focal mechanisms. Strike, dip, sense (left or right lateral), normal or reverse and depth shown. Base image is of gravimetric lineaments overlying an image of the second derivative in the horizontal plane for combined surfaces of complete Regional Bouguer, Bouguer and Free-air(height correction) anomalies.



2100Kb

1970s Banda Area Harvard focal mechanisms - all depths colour coded; magnitude shown by relative symbol size. Base image is of gravimetric lineaments overlying an image of the second derivative in the horizontal plane for combined surfaces of complete Regional Bouguer, Bouguer and Free-air(height correction) anomalies.
Indonesia 1980s Banda Area Harvard focal mechanisms



2100Kb

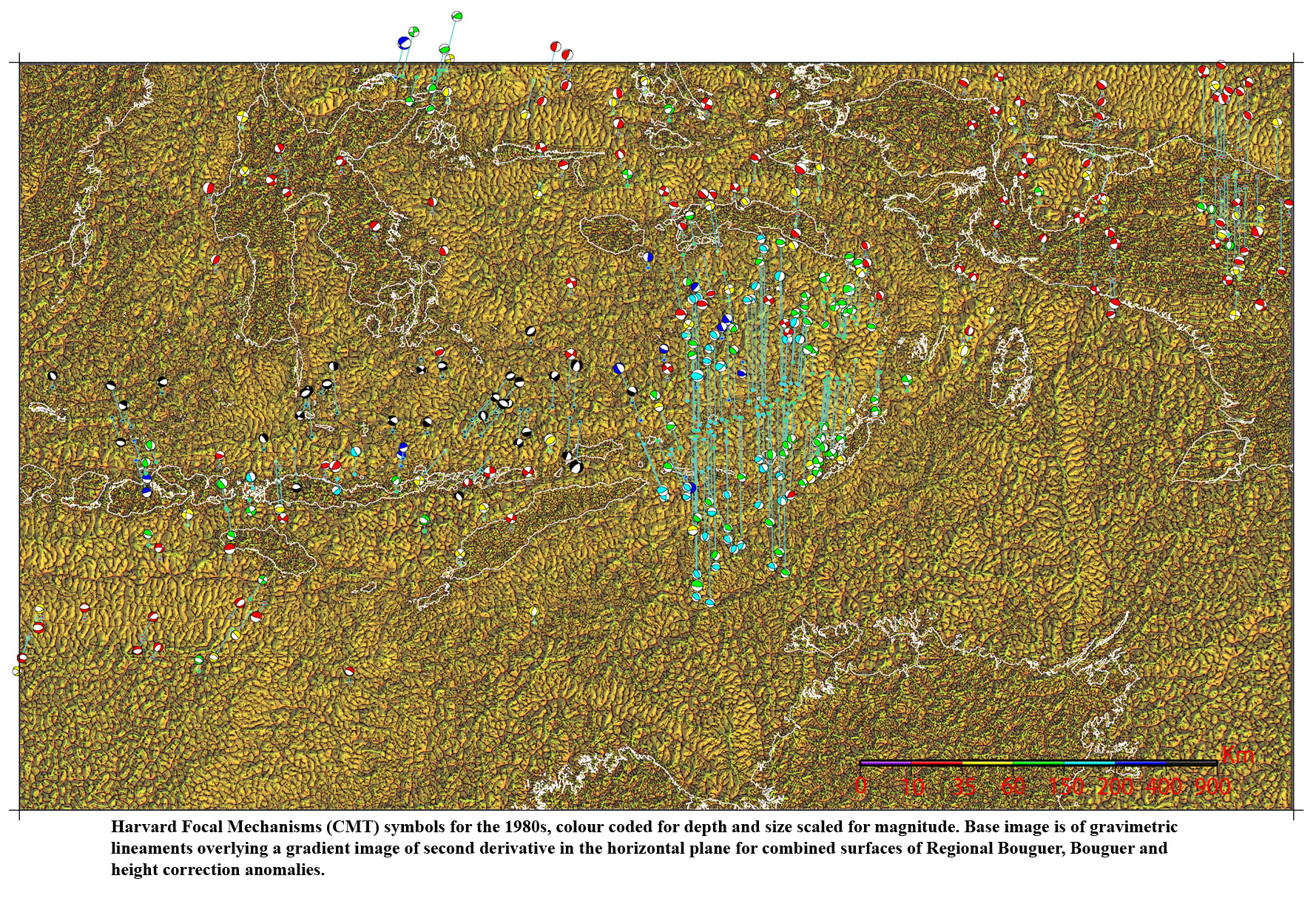

1980s Banda Area Harvard focal mechanisms - all depths colour coded; magnitude shown by relative symbol size. Base image is of gravimetric lineaments overlying an image of the second derivative in the horizontal plane for combined surfaces of complete Regional Bouguer, Bouguer and Free-air(height correction) anomalies.
Indonesia 1990s Banda Area Harvard focal mechanisms



2100Kb

1990s Banda Area Harvard focal mechanisms - all depths colour coded; magnitude shown by relative symbol size. Base image is of gravimetric lineaments overlying an image of the second derivative in the horizontal plane for combined surfaces of complete Regional Bouguer, Bouguer and Free-air(height correction) anomalies.
Indonesia 2000-2005 Banda Area Harvard focal mechanisms

May 09

2100Kb

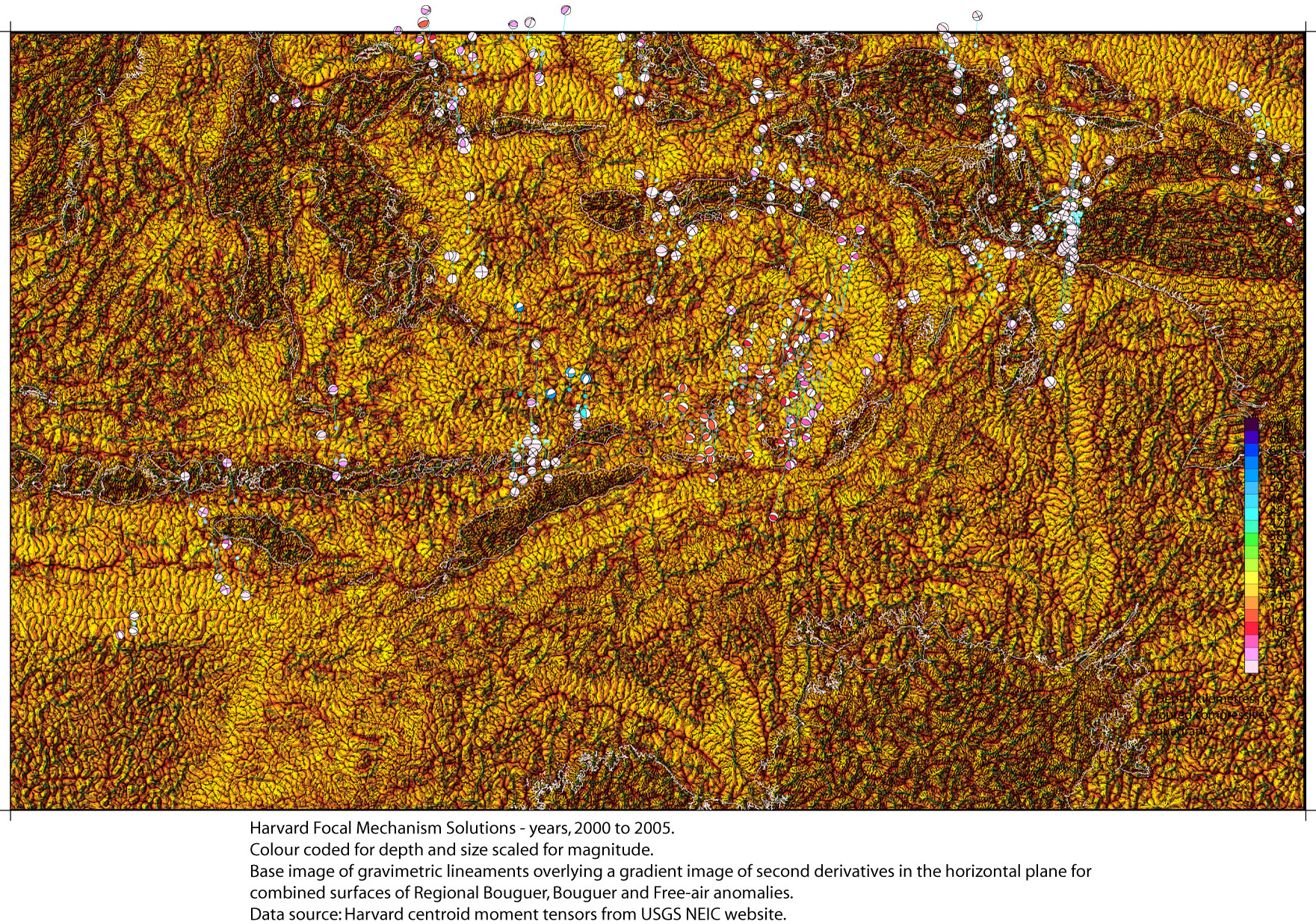

2000-2005 Banda Area Harvard focal mechanisms - all depths colour coded; magnitude shown by relative symbol size. Base image is of gravimetric lineaments overlying an image of the second derivative in the horizontal plane for combined surfaces of complete Regional Bouguer, Bouguer and Free-air(height correction) anomalies.
Indonesia 2005-2009 Banda Area Harvard focal mechanisms

May 09

2100Kb

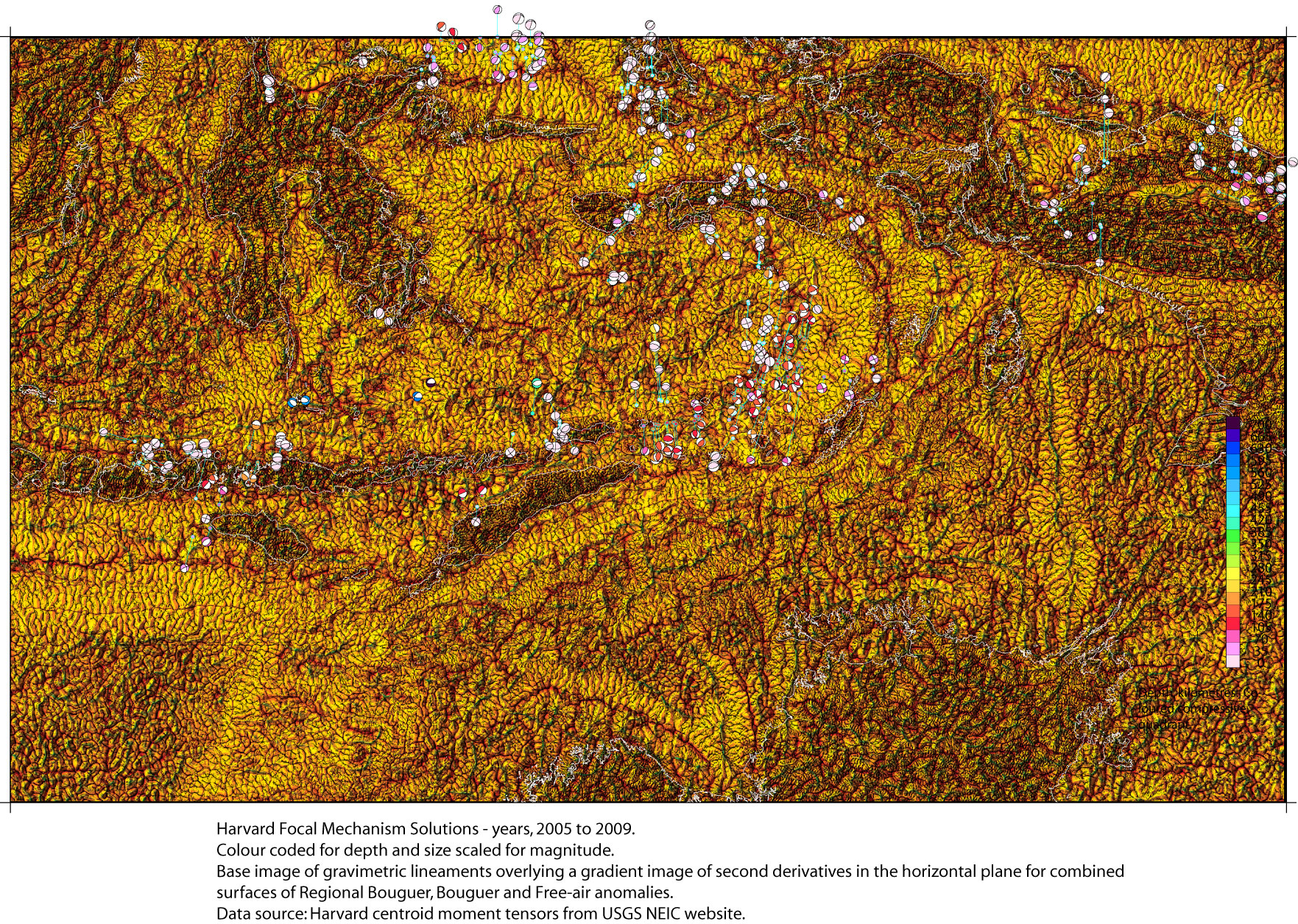

2005-2009 Banda Area Harvard focal mechanisms - all depths colour coded; magnitude shown by relative symbol size. Base image is of gravimetric lineaments overlying an image of the second derivative in the horizontal plane for combined surfaces of complete Regional Bouguer, Bouguer and Free-air(height correction) anomalies.
