Eastern Indonesia complete Bouguer gravity residual anomaly maps

Summary

The maps available from the images below are of the complete Bouguer residual anomaly surface. The regional surface was produced by applying a gaussian, low-pass, 21x21 arc minute filter to the Bouguer anomaly surface of the whole area. The residual was produced by subtracting the regional surface from the Bouguer anomaly surface.

Details of the data used are available on the Data Sources page.

Details of the reduction process are available on the Data Processing page.

Note: the marine topographic data, used to produce the Bouguer anomaly, have not had the ship track artifacts removed which can lead to the creation of odd features in the Bouguer residual anomaly maps - check the topography maps if in doubt.

Interactive maps - complete Bouguer residual anomaly

The map below has been sectioned into 25 clickable regions. Clicking on a particular region will open a new tab showing the zoomed in region in more detail. To see the whole image in a new tab click here.

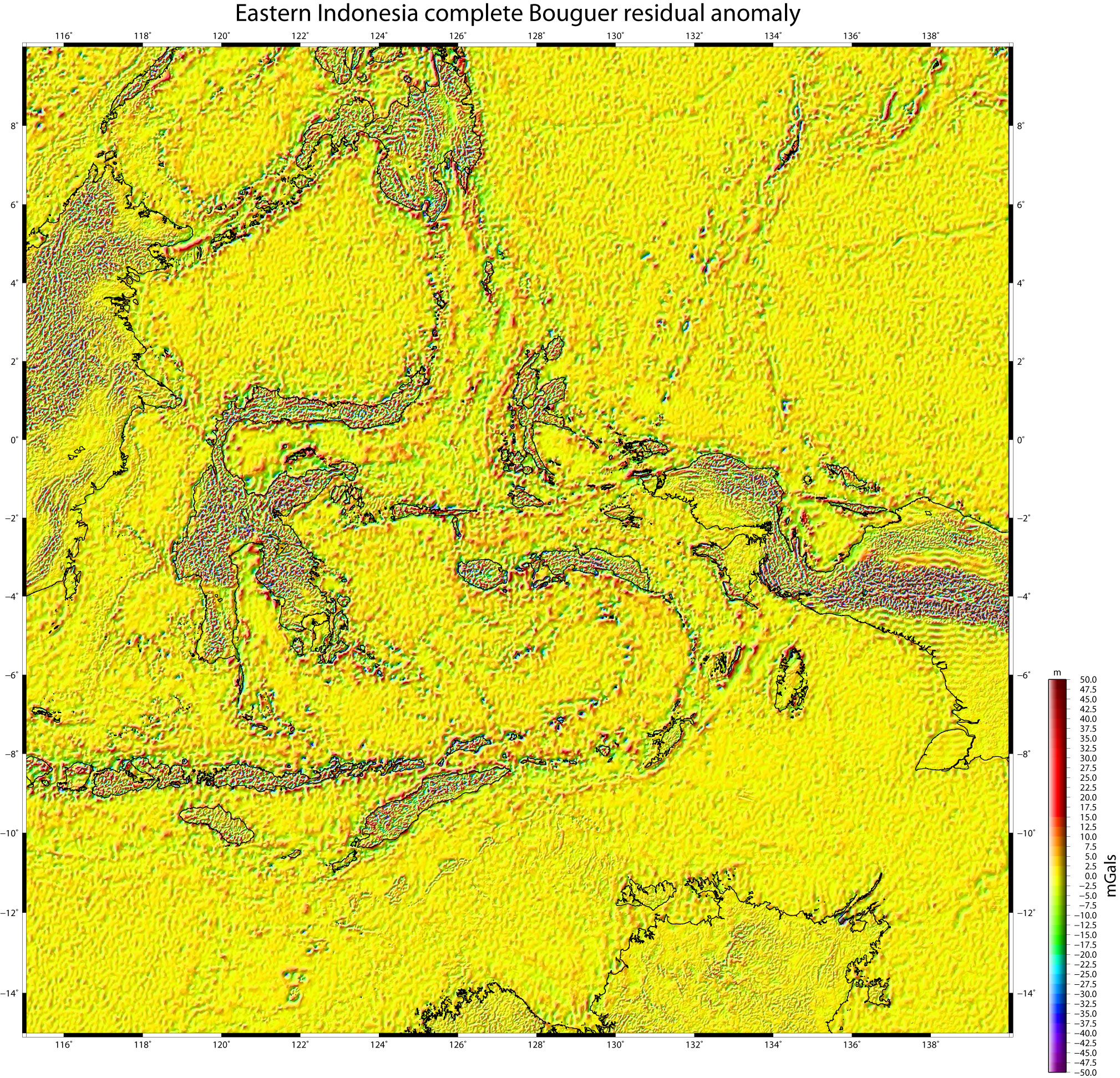

Eastern Indonesia Bouguer anomaly

Palawan complete Bouguer residual anomaly map West Mindanao complete Bouguer residual anomaly map East Mindanao complete Bouguer residual anomaly map Palau complete Bouguer residual anomaly map Yap complete Bouguer residual anomaly map East Kalimantan complete Bouguer residual anomaly map Celebes Sea complete Bouguer residual anomaly map North Halmahera complete Bouguer residual anomaly map Pegun Islands complete Bouguer residual anomaly map West Caroline complete Bouguer residual anomaly map Makassar Strait complete Bouguer residual anomaly map Central Sulawesi complete Bouguer residual anomaly map Buru Irian Jaya Papua Sumbawa complete Bouguer residual anomaly map Flores complete Bouguer residual anomaly map Timor-Leste Timor complete Bouguer residual anomaly map Tanimbar Kai Aru complete Bouguer residual anomaly map South Papua complete Bouguer residual anomaly map North Australian Basin complete Bouguer residual anomaly map Scott Plateau complete Bouguer residual anomaly map Bonaparte Basin complete Bouguer residual anomaly map North Australia Gulf of Carpentaria complete Bouguer residual anomaly map

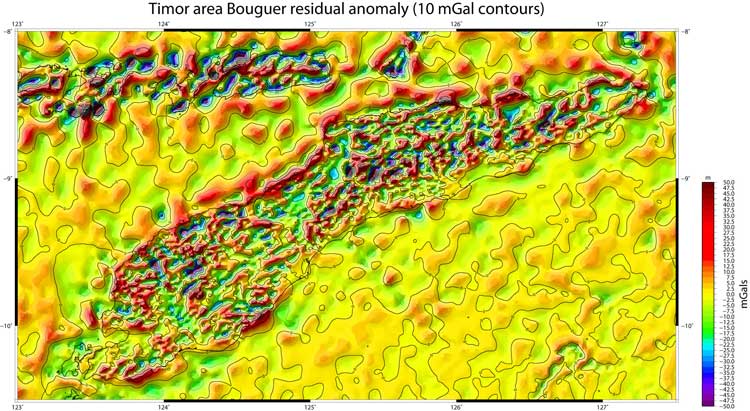

Timor Island

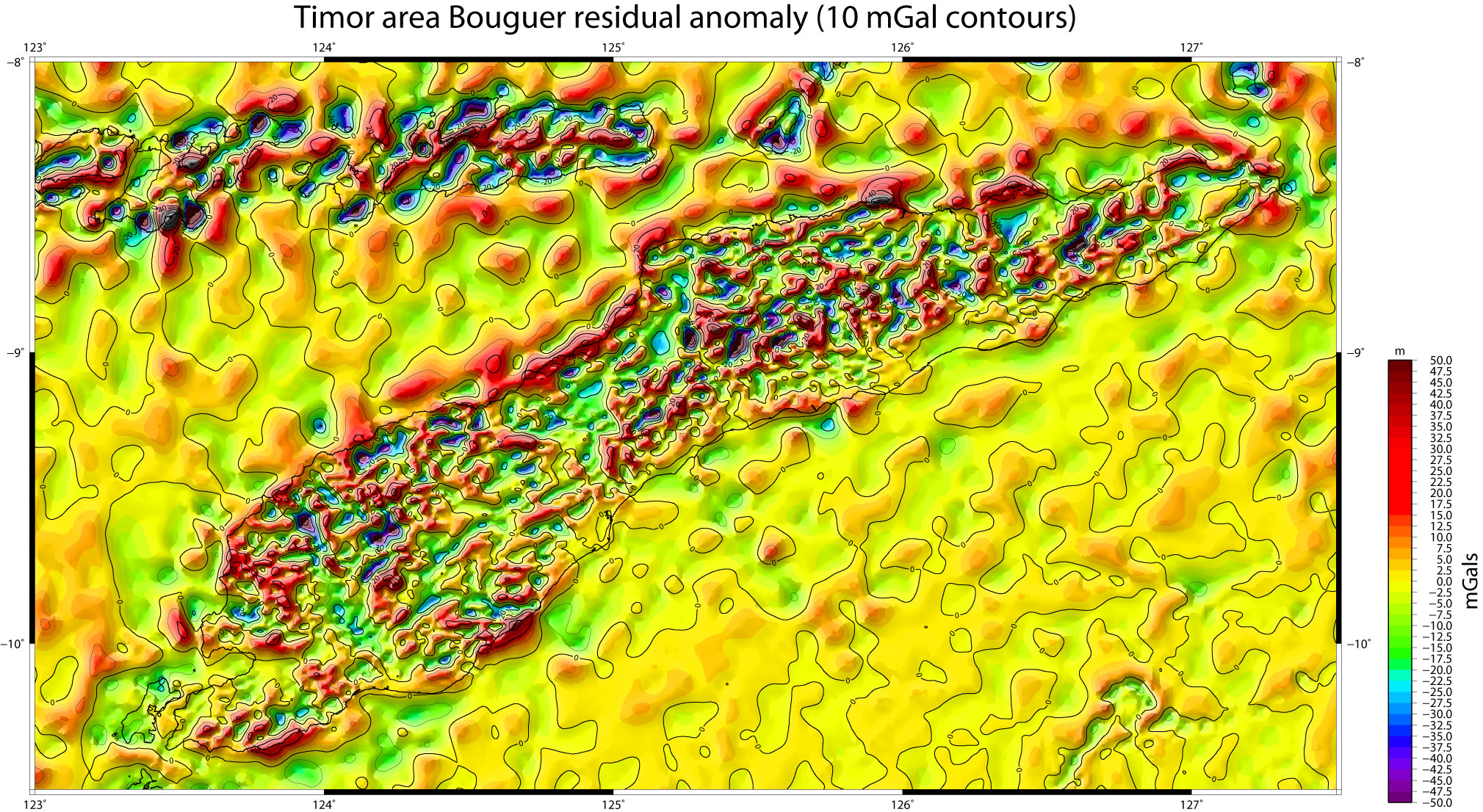

Timor Island Bouguer residual anomlay map
