Eastern Indonesia free-air gravity residual anomaly maps

Summary

The maps available from the images below are of the free-air residual anomaly surface. The regional surface was produced by applying a gaussian, low-pass, 21x21 arc minute filter to the free-air anomaly surface of the whole area. The residual was produced by subtracting the regional surface from the free-air anomaly surface.

Details of the data used are available on the Data Sources page.

Details of the reduction process are available on the Data Processing page.

Interactive maps - free-air gravity residual anomaly

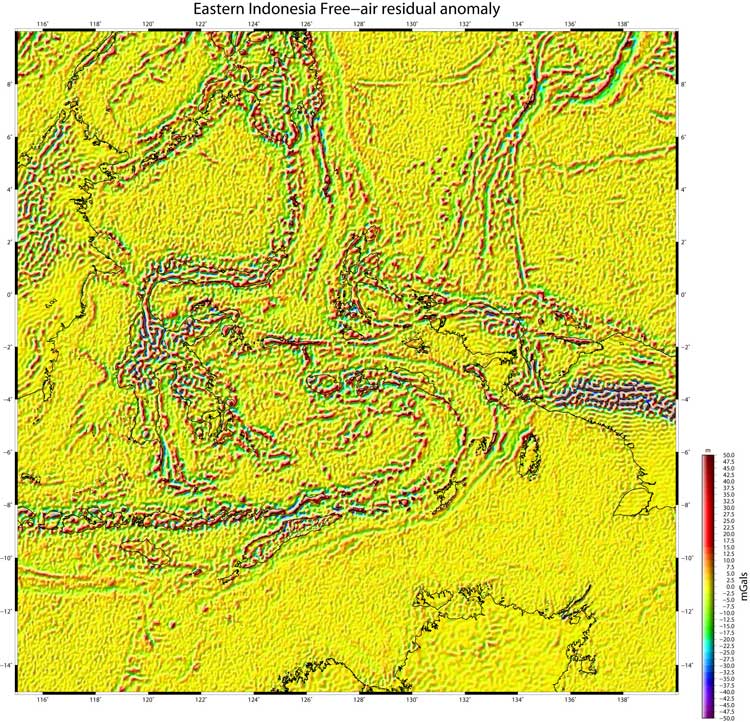

The map below has been sectioned into 25 clickable regions. Clicking on a particular region will open a new tab showing the zoomed in region in more detail. To see the whole image in a new tab click here.

Eastern Indonesia Bouguer anomaly

Palawan Free-air gravity residual anomaly map West MindanaoFree-air gravity residual anomaly map East MindanaoFree-air gravity residual anomaly map PalauFree-air gravity residual anomaly map YapFree-air gravity residual anomaly map East KalimantanFree-air gravity residual anomaly map Celebes SeaFree-air gravity residual anomaly map North HalmaheraFree-air gravity residual anomaly map Pegun IslandsFree-air gravity residual anomaly map West CarolineFree-air gravity residual anomaly map Makassar StraitFree-air gravity residual anomaly map Central SulawesiFree-air gravity residual anomaly map Buru SeramFree-air gravity residual anomaly map Irian JayaFree-air gravity residual anomaly map PapuaFree-air gravity residual anomaly map SumbawaFree-air gravity residual anomaly map FloresFree-air gravity residual anomaly map Timor-Leste TimorFree-air gravity residual anomaly map Tanimbar Kai AruFree-air gravity residual anomaly map South PapuaFree-air gravity residual anomaly map North Australian BasinFree-air gravity residual anomaly map Scott PlateauFree-air gravity residual anomaly map Bonaparte BasinFree-air gravity residual anomaly map North AustraliaFree-air gravity residual anomaly map Gulf of CarpentariaFree-air gravity residual anomaly map

Timor area - free-air residual

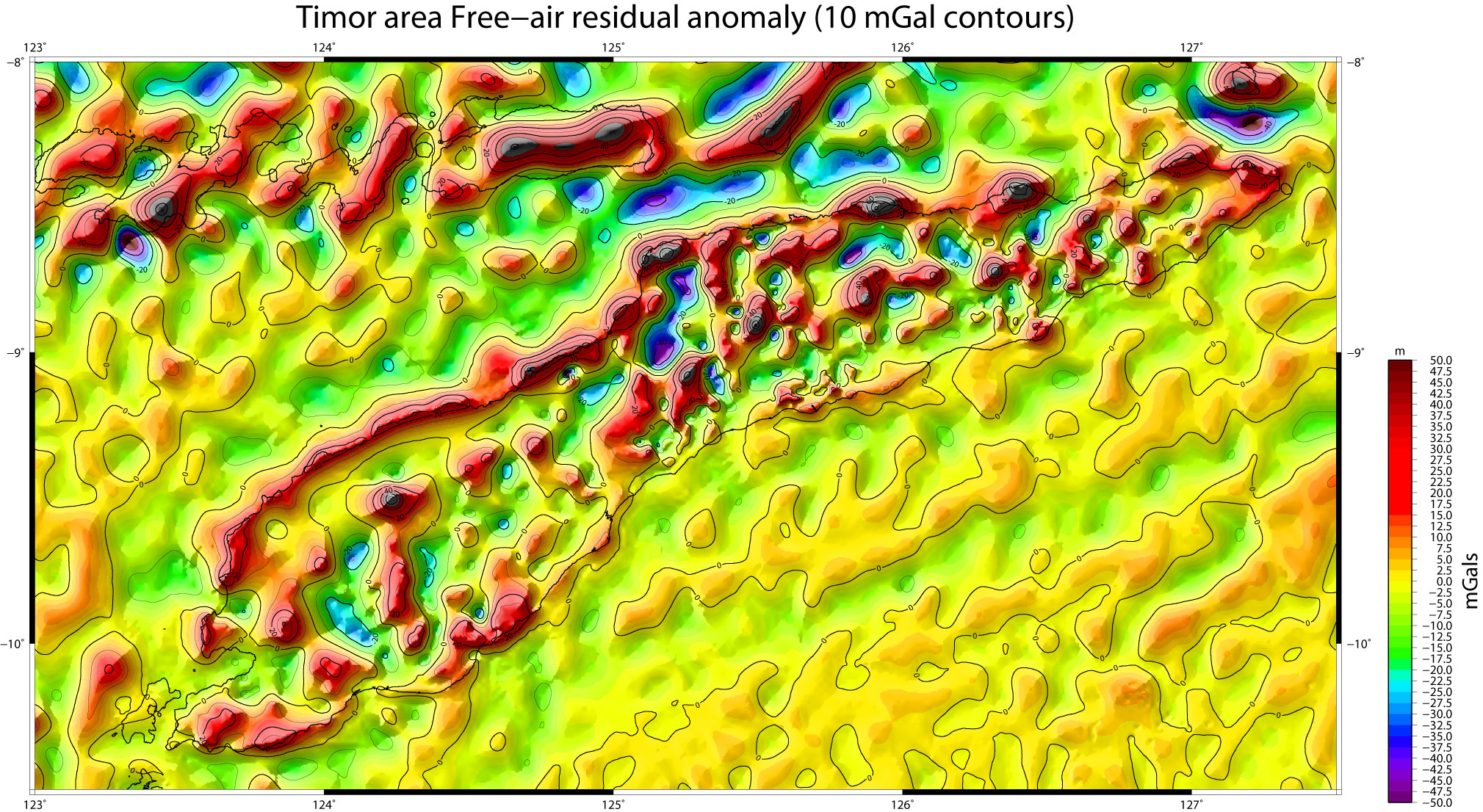

Timor free-air gravity residual anomaly map
